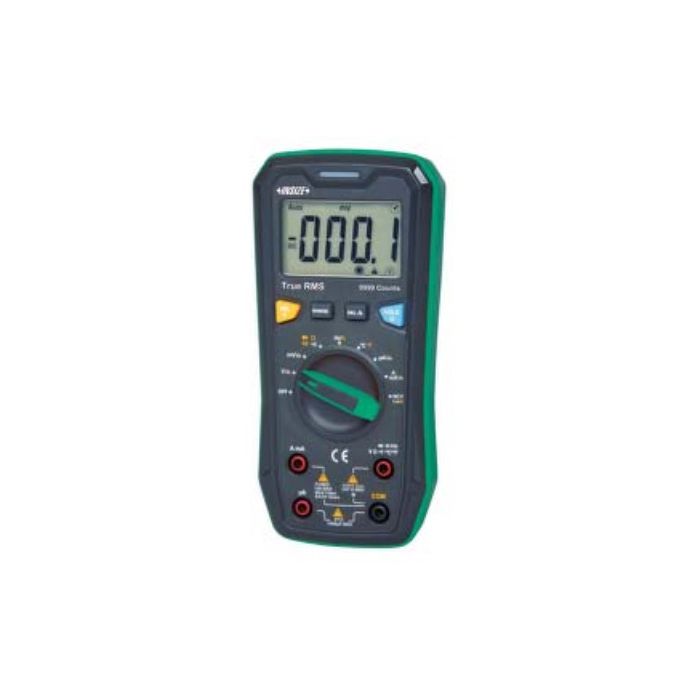

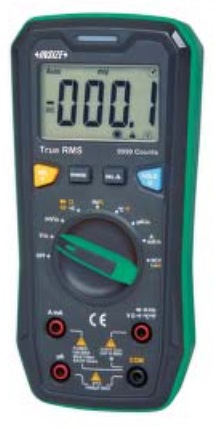

Insize digitalni multimetar IN9219-KV220

Jednosmerni (DC) napon 9.999mV/99.99mV 0.001mV/0.01mV ±(0.7%+8d) 999.9mV/9.999V/ 99.99V/999.9V 0.1mV/0.001V/0.01V/ 0.1V ±(0.5%+3d)
Neizmenični (AC) napon 9.999mV/99.99mV 0.001mV/0.01mV ±(1.0%+3d) 999.9mV/9.999V/ 99.99V/ 999.9V 0.1mV/0.01V/0.01V/ 0.1V ±(0.8%+3d)
Jednosmerna (DC) struja 999.9μA 0.1 μA ±(0.8%+3d) 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3d)
Neizmenična (DC) struja 999.9μA 0.1 μA ±(1.0%+3d) 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3d)
Otpornost 999.9Ω/9.999kΩ/99.99kΩ /999.9kΩ 0.1Ω/0.001kΩ/0.01kΩ/ 0.1kΩ ±(0.8%+2d)
9.999MΩ 0.001MΩ ±(1.5%+3d) 99.99MΩ 0.01MΩ ±(2.0%+5d)
Kapacitet 9.999nF 0.001nF ±(4.0%+10d) 99.99nF/999.9nF/9.999μF /99.99μF/999.9μF 0.01nF/0.1nF/0.001μF/ 0.01μF/0.1μF ±(4.0%+5d) 9.999mF 0.001mF ±(10%)
Frekvencija 99.99Hz~9.999MHz 0.01Hz~0.001MHz ±(0.1%+5d)
Temperatura -40~1000 °C -40~0 °C 1 °C ±4 °C >0~100 °C 1 °C ±(1.0%+5d) >100~1000 °C
1 °C ±(2.0%+5d) -40~1832 °F -40~32 °F 1°F ±5°F >32~212 °F 1°  ±(1.5%+5d) >212~1832 °F 1 °F
±(2.5%+5d)
Radni ciklus 0.1%~99.9% 0.1% ±(3%+5d)
Dioda DA
Provera kontinuiteta <30Ω
Napajanje 3x1.5V AAA baterija
Dimenzija 187x88x56 mm
Težina: 0.4 kg
Vreme isporuke: 2-4 dana
